DIY BMS or do it yourself battery management system.

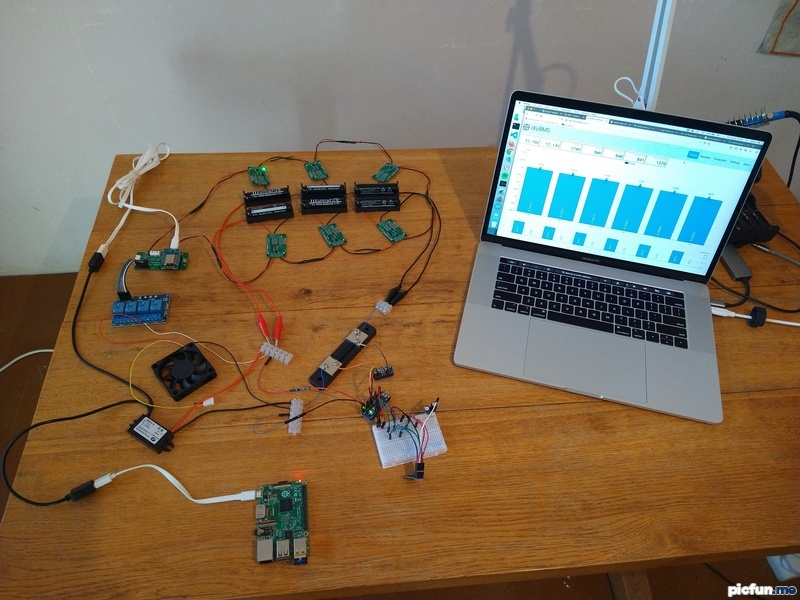

I really want to move to Lithium iron phosphate batteries onboard (not gonna explain the pros and cons) and drop-in solutions are overpriced and do have issues anyway. Also it needs a lot of different controll compared to lead acid batteries. So just not to be too bored with volunteered isolation while moving between countries I found out about DIY BMS (You can find a lot of details on youtube and while googling). People are using it mainly for powerwalls but I thought why not to give a try for a boat as well?
![DIY BMS](http://picfun.me/bin/5f2d1d3a74c9681bffde7659/diy-bms.jpg)

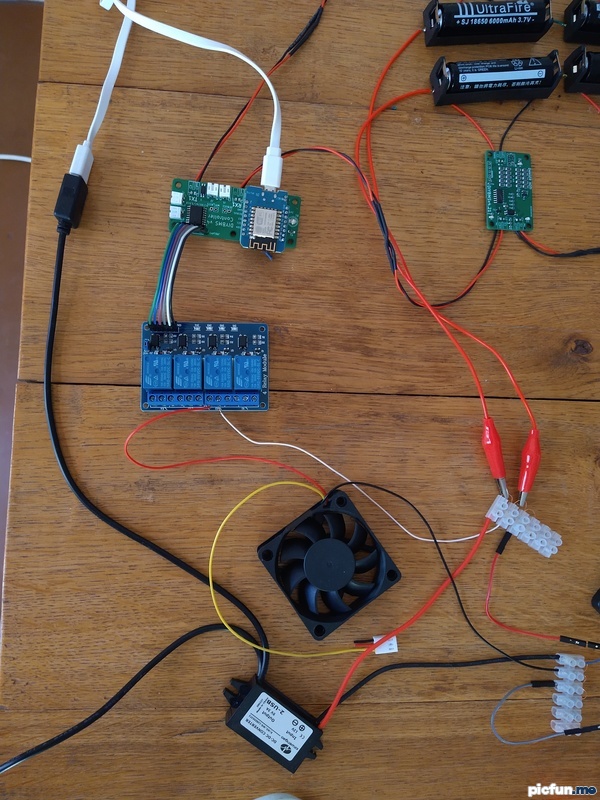

Just for a proof of concept it was easier to use Lithium-ion batteries to get a 12V bank. DIY system can have cut-in/off relays as well when voltage or temperature is too high or low.
![DIY BMS Relay](http://picfun.me/bin/5f2d1d5274c9681bffde765d/relay.jpg)

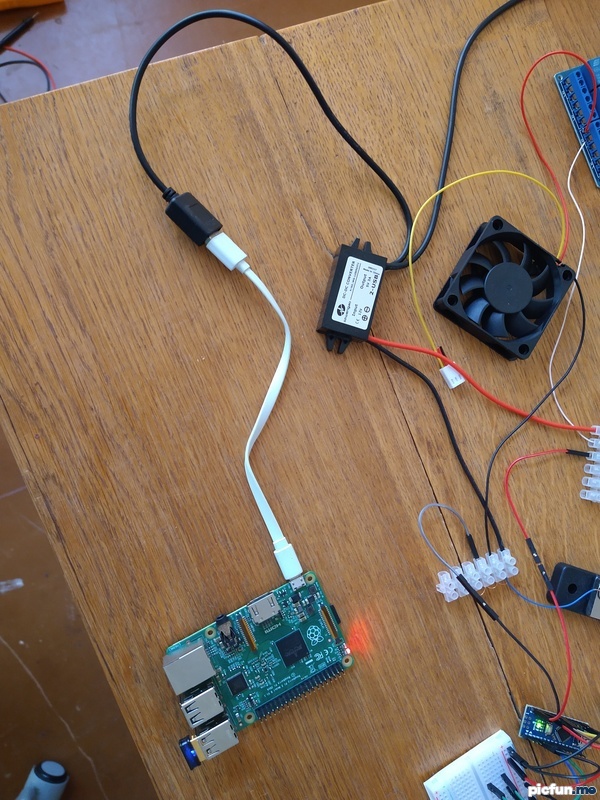

As it can send data to InfluxDB and as I have Raspberry PI onboard as main computer anyway I decided to connect it together via WIFI.
![Raspberry PI](http://picfun.me/bin/5f2d1d4e74c9681bffde765a/medium.jpg)

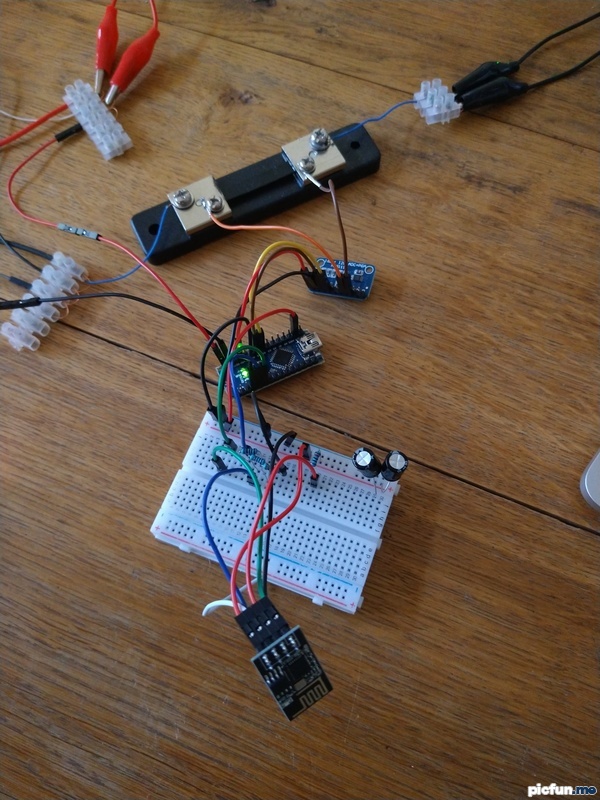

Another challenge was to install something like ammeter. As I was completely new at Arduino world, I made some mistakes and bought not the most suited chips, and had some try and fail days when connecting resistors and capacitors and reprogramming (can I say firmware? :) </br>So here it is - Arduino Nano sending Amps from ADS1115 through EPS8266 wifi chip to Raspberry PI.
![DIY Ammeter](http://picfun.me/bin/5f2d1d5174c9681bffde765c/ammeter.jpg)

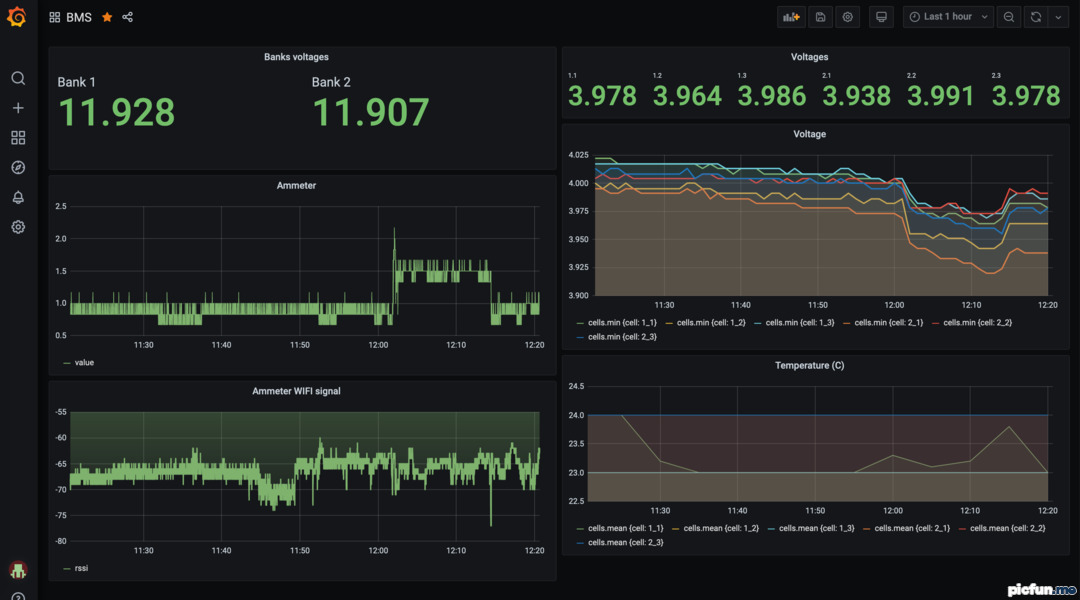

All can be seen in Grafana dashboard which is read from InfluxDB. </br>So here it is - Arduino Nano sending Amps from ADS1115 through EPS8266 chip to Raspberry PI.
![DY BMS Grafana](http://picfun.me/bin/5f2d1d6674c9681bffde765e/grafana.jpg)

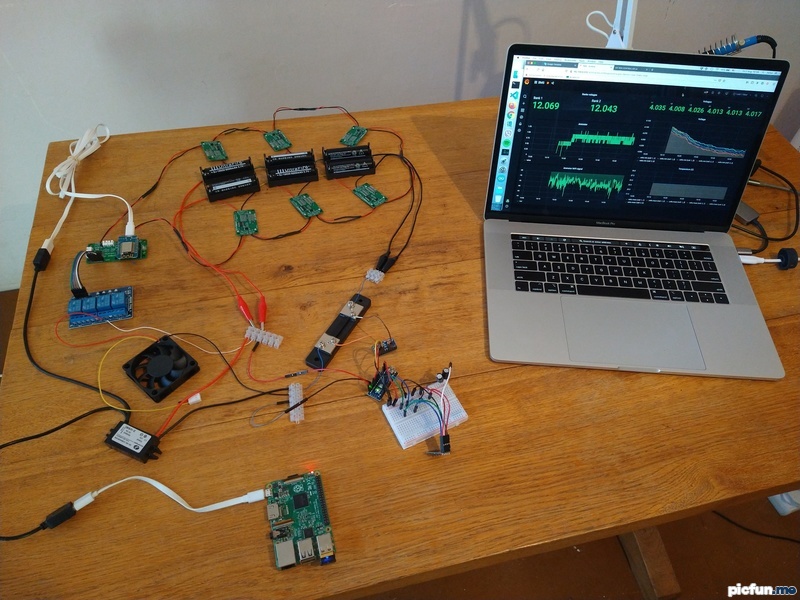

And there you see the result - tiny 12V 12Ah battery bank! (each cell is 6000mAh). It still needs proper wiring and fusing and a voltmeter for total bank voltage. Also I really want to install MPU9250 gyro sensor to send more data to the autopilot onboard. But it seems that Sail Map app needs more of my attention for now.
![DY BMS Grafana](http://picfun.me/bin/5f2d1d5074c9681bffde765b/diy-bms-lithium.jpg)
